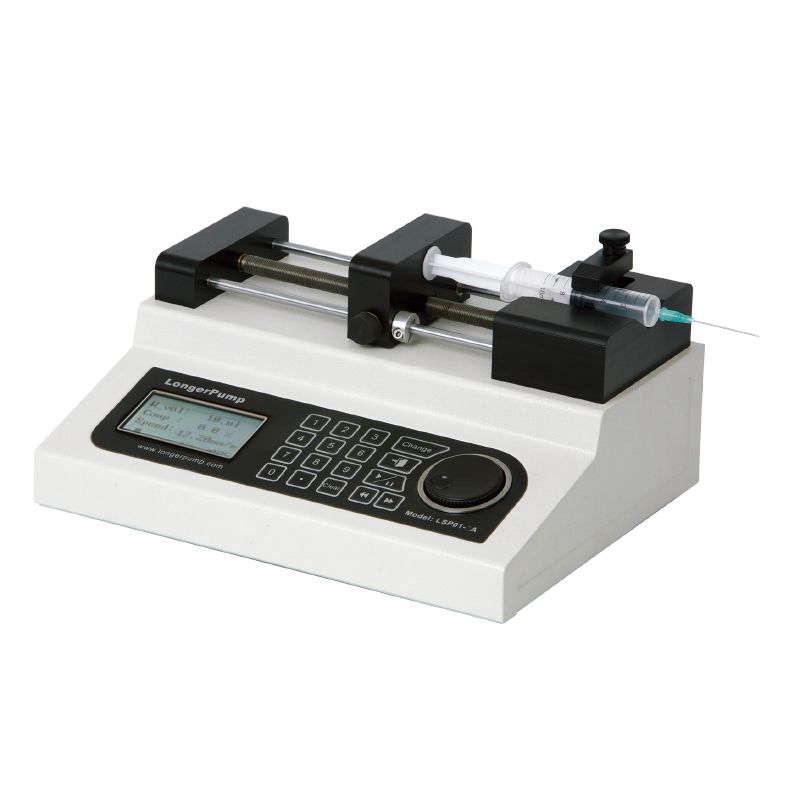

Labor-Spritzenpumpe, 1 Kanal, 0,001μl - 43,349ml/min
Produktbild kann vom Original abweichen

LSP01-3A Labor-Spritzenpumpe, 1 Kanal, 0,001μl - 43,349ml/min

Förderrate: 0,001μl - 43,349ml/min

Kanäle: 1

Wird hauptsächlich in Laboranwendungen verwendet.

Hervorragende EMV-Leistung, ESD≥Level IV (IEC 61000-4-2).

Die zulässige Spritzenspezifikation liegt zwischen 10 μl und 60 ml.

Geeignet für die Flüssigkeitsübertragung mit hoher Genauigkeit und kleinen Durchflussraten.

ca. 2-3 Wochen
Nur noch %1 verfügbar
Artikelnr.
LSP01-3A
$ 2.099,90

Sie benötigen größere Mengen? Gerne erstellen wir Ihnen ein individuelles Angebot. Angebot jetzt anfragen

Funktionen

  • Syringe Selection: The syringe can be selected in the manufacturer table which includes manufacturer, material and size or input the inner diameter of the syringe barrel directly
  • Easy to operate: Combining big screen LCD display with rotary coded switch and membrane keypad makes the operation simple and prompt.
  • Working Mode: Infusion
  • Memory Function:
    • The parameters are saved in EEPROM. The parameters don't need to be reset when power returns after an interruption
    • In flow rate mode, the pump remains running or stop according to the setting parameters when power returns after an interruption
  • Protection Function: The pump will stall and give an alarm when the drive structure of the pump is blocked
  • Communication Function: Realize computer control through RS485 communication interface
  • External Control Function: Input/output control
  • Calibration Function: Acquire accurate volume through calibration
  • Syringe Protection: Adjust syringe rest to prevent syringe from damaging

Spezifikationen

No. of Syringes 1
Advance per Mircostep 1/16step: 0,156 µm
Infusion Volumn per Microstep 0,13 µL (60 mL BD Syringe)
Syringe Size 10 µL - 60 mL
Max, Linear Rate 65 mm/min
Min, Linear Rate 5µm/min
Flow Rate 0,831 nL/min - 54,155 ml/min
Working Mode Infusion
Linear Force > 9 kgf
Max, Step Rate 6933  (1/16step)/ sec
Min, Step Rate 16  (1/16 step) /30 sec
Accuracy = 0,5% error in the condition of > 30% of max, infusion distance
Setting Mode Rotary coded switch and membrane keypad
Display 128 x 64 graphic LCD
Power AC 196V-240V/20W
Operating Condition Temperature  5 °C - 40 °C    Relative humidity < 80 %
Dimensions 280 × 210 × 140 mm
Weights 3,6 kg



Spritzen

Syringe Syringe ID (mm) Flow Rate (µl/min-ml/min)
10µl 0,5 0,001-0,0128
25µl 0,8 0,0025-0,0327
50µl 1,1 0,0048-0,0618
100µl 1,6 0,0101-0,1307
250µl 2,3 0,0208-0,2701
500µl 3,25 0,0415-0,5392
1ml 4,72 0,0875-1,1373
2ml 9 0,3181-4,1351
5ml 13,1 0,6739-8,7608
10ml 16,6 1,0821-14,068
20ml 19 1,4176-18,429
30ml 23 2,0774-27,006
60ml 29,14 3,3346-43,349
